Rotation, Scale, Translation-Invariant Template Matching

Ciratefi and Forapro demonstration programs


Note: Ciratefi is not invariant to affine or perspective transformation.

cirateg.zip The original grayscale Ciratefi (2007).
Forapro, a newer and faster RST-invariant template matching (2009).

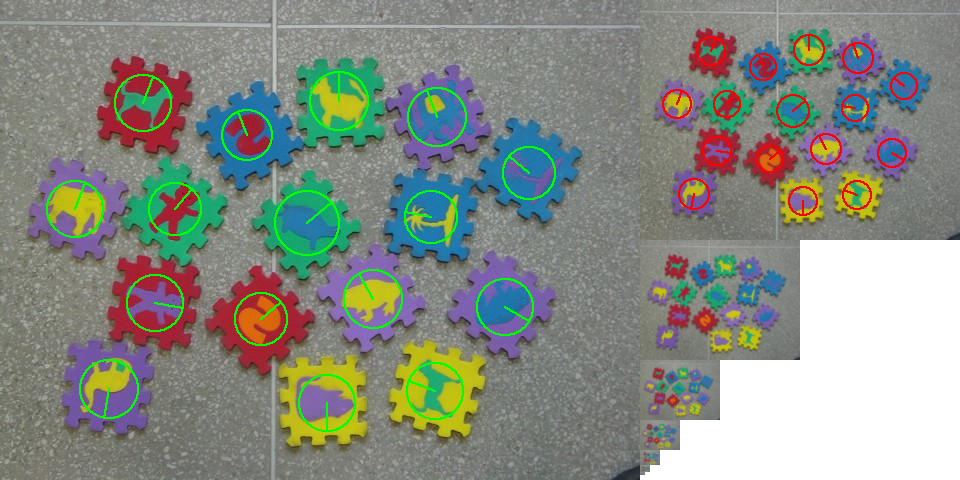

ciratefi105.zip Improved color and grayscale Ciratefi in pyramid scale (revised 2014). Almost all parameters are set automatically. Outputs a text file with matchings. Read the manual.

Note: If the program does not run, you must install the following VC-2005 redistributables:

ciratefi106.zip Ciratefi with parallel processing using OpenMP (revised 2016). Read the manual.

Related materials:

[Ri13] S. A. Araújo and H. Y. Kim, “Ciratefi: An RST-Invariant Template Matching with Extension to Color Images,” Integrated Computer-Aided Engineering, vol. 18, no. 1, pp. 75-90, 2011.
[Ri11] H. Y. Kim, “Rotation-Discriminating Template Matching Based on Fourier Coefficients of Radial Projections with Robustness to Scaling and Partial Occlusion,” Pattern Recognition, vol. 43, no. 3, pp. 859-872, March 2010.
[Ci26] S. A. Araújo and H. Y. Kim, “Color-Ciratefi: A color-based RST-invariant template matching algorithm,” 17th Int. Conf. Systems, Signals and Image Processing, Rio de Janeiro, 2010.
[Ci25] H. P. A. Nobre and Hae Yong Kim, “Automatic VHDL Generation for Solving Rotation and Scale-Invariant Template Matching in FPGA,” V Southern Programmable Logic Conference, São Carlos, pp.21-26, 2009.
[Ci22] H. Y. Kim and S. A. Araújo, “Grayscale Template-Matching Invariant to Rotation, Scale, Translation, Brightness and Contrast,” IEEE Pacific-Rim Symposium on Image and Video Technology, Lecture Notes in Computer Science, vol. 4872, pp. 100-113, 2007.
